Product Description
DJI SDR Transmission 2 Expansion Accessory Kit
More connections. A secure rig.
Add SDI connectivity and a protective mounting cage to your DJI SDR Transmission 2 setup. This accessory kit is for crews adapting a compatible transceiver to a more involved camera or monitoring rig.
Choose the connections your rig needs.

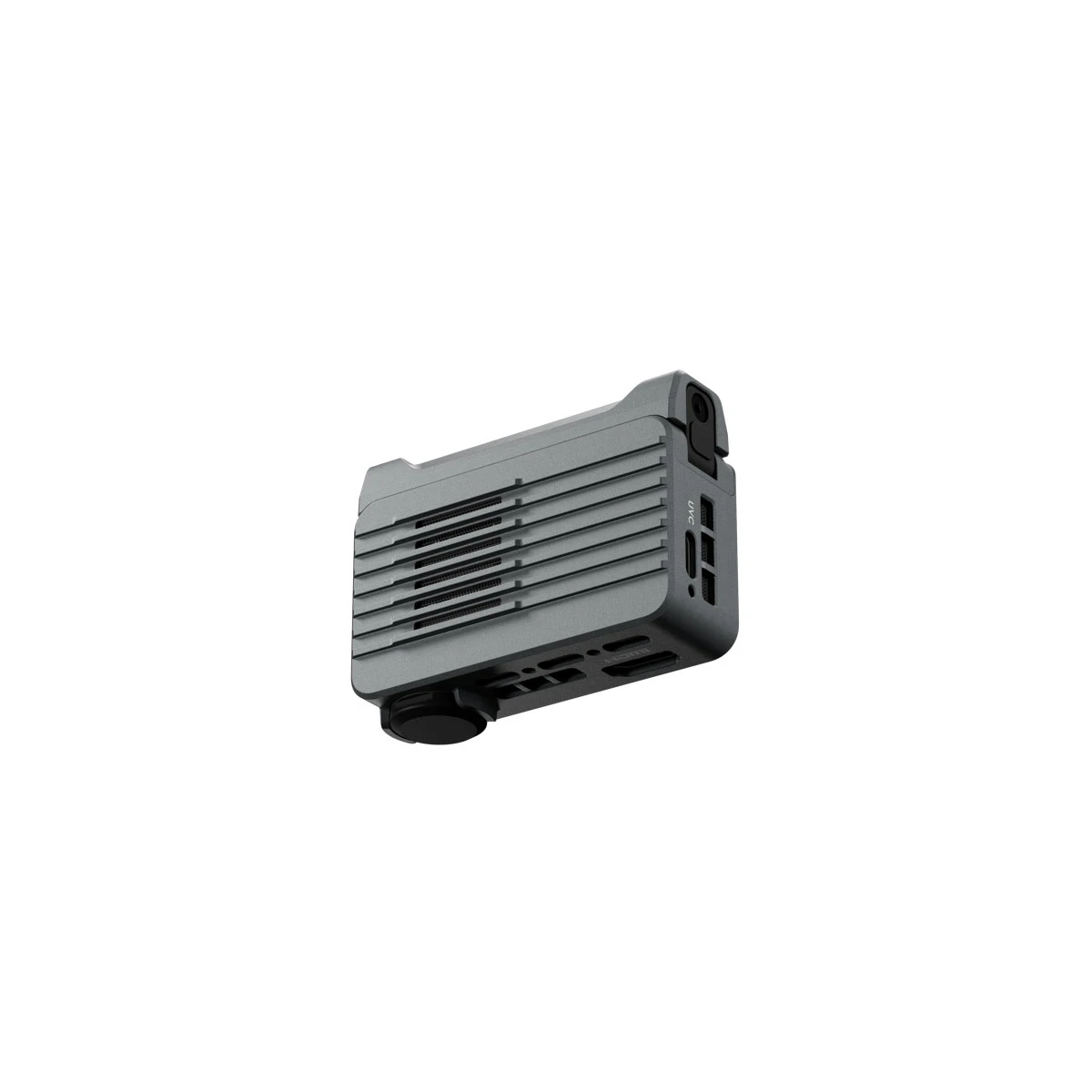

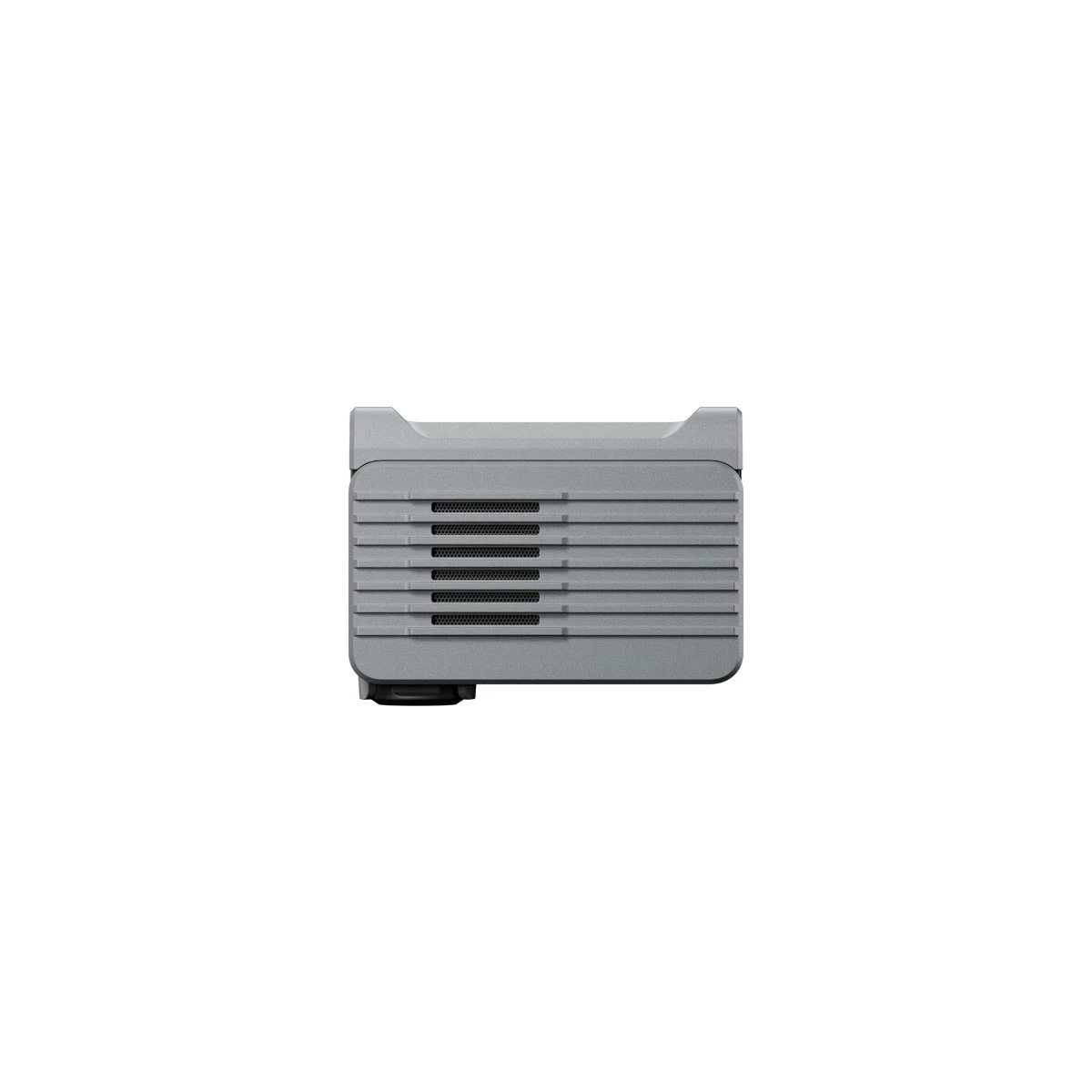

Choose the Expansion Plate when your camera or monitor needs SDI.
It provides SDI, HDMI and USB-C connections. The transceiver main unit already has HDMI and DP, but no built-in SDI port.
Build a more secure mount.

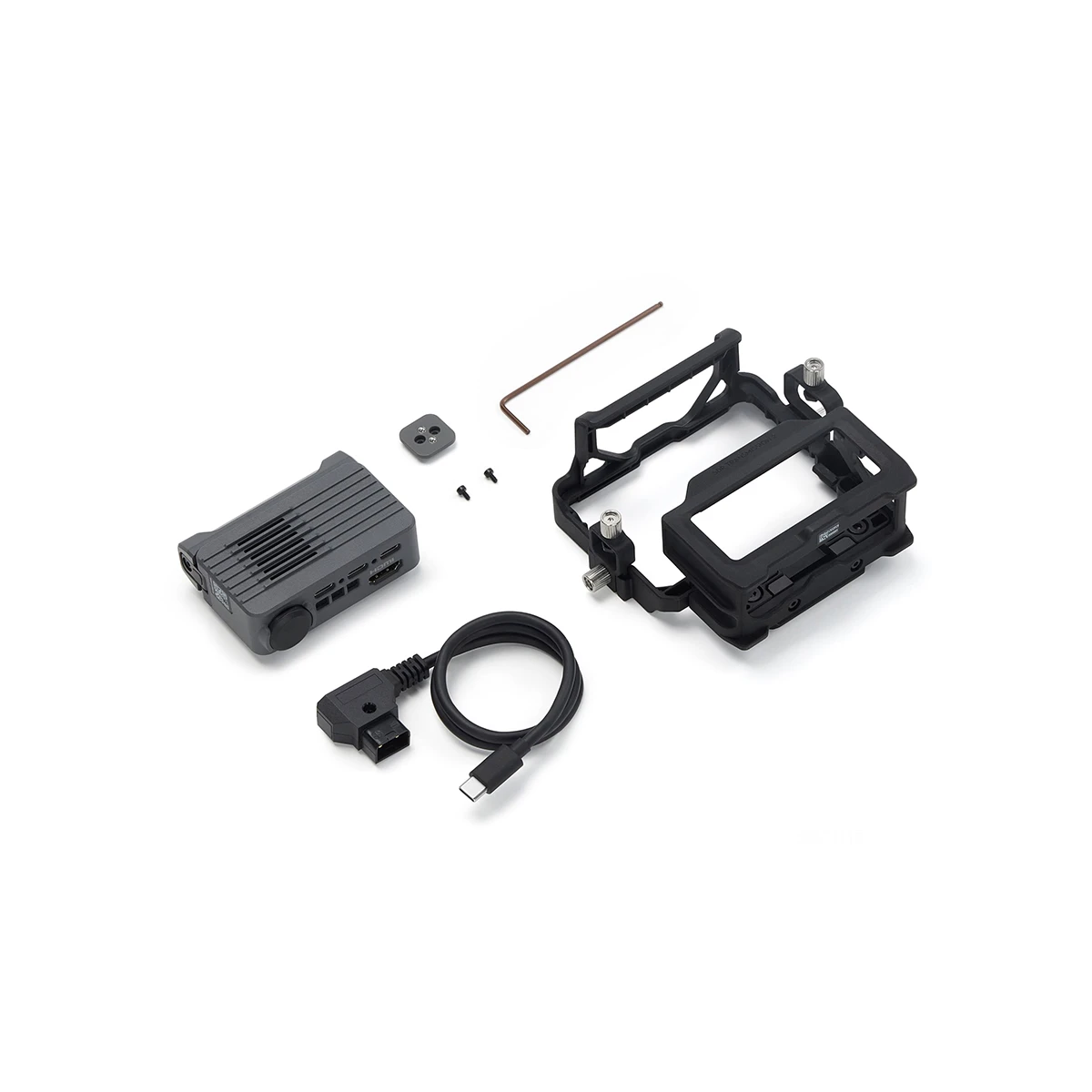

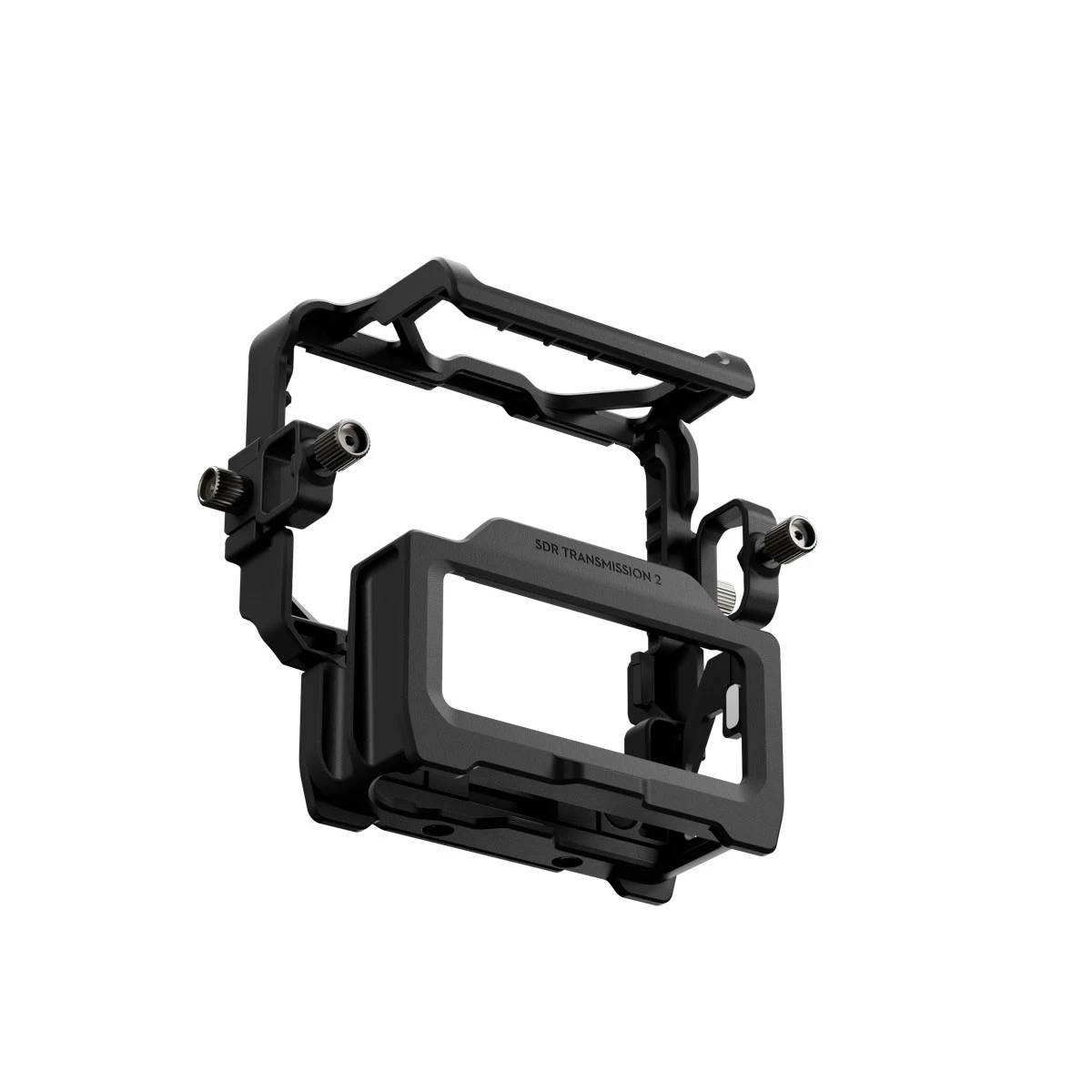

The included Transceiver Cage adds mounting points and HDMI/USB-C cable clamps for the transceiver and Expansion Plate.
The kit also includes a cold shoe adapter, D-TAP to USB-C power cable and a 2 mm ball-end hex key.
Plan your monitor outputs.
On the receiver side, the Expansion Plate can output SDI and HDMI together.
You can also use one main-unit output, HDMI or DP, for up to three simultaneous feeds. The transceiver still accepts only one video input at a time in transmitter mode.
Supply the transceiver and connected equipment.
Use this kit with DJI SDR Transmission 2.
A transceiver, camera, monitor and suitable power source are separate purchases. For DCI 4K/60fps HDR, DJI specifies the HDMI or DP port on the transceiver main unit; do not assume the same format applies to every expansion port.
Additional Details
| MPN | 24148109 |
|---|---|
| Available for Special Order | Final sale: No returns/exchanges |
