Product Description
FASCINATING CREATION DURING THE PHOTOGRAPHIC JOURNEY
Only involve innovation in the our classic works, can we achieve sustainable development in this Era of survival of the fittest.
COMPACT AND PORTABLE
Perfectly fits 20" luggage suitcase, compact size and ease of operation. Makes it ideally suited for travellers and those on the go.
4 Section | Tube Diameter: 28/25/22/19mm | 10KG Max Load | 1.66KG Weight | 470mm Folded Length | 1687mm Max Height | 225mm Minimum Height
GROUND SETTING
Remove the center column by loosening the twist lock. Set the angle of the tripod to the maximum and install the included short center column, mounting platform and 3/8" & 1/4" mounting stud one by one, tighten the twist lock. Ground setting is now finished.
TORAY 100% 10-LAYER CARBON FIBER
Toray 100% 10-layer carbon fiber leg tubes feature cross rhombus structure for greater strenght, stability and less vibration.
MOUNTING PLATFORM AND CENTER COLUMN
PLATFORM
Hollow-out spider design for lighter weight without compromising strength.
3/8" & 1/4" MOUNTING STUD
Turn the mounting platform clockwise completely and pull out the mounting stud and then install it with the other end upside. Turn the mounting platform anticlockwise to lock.

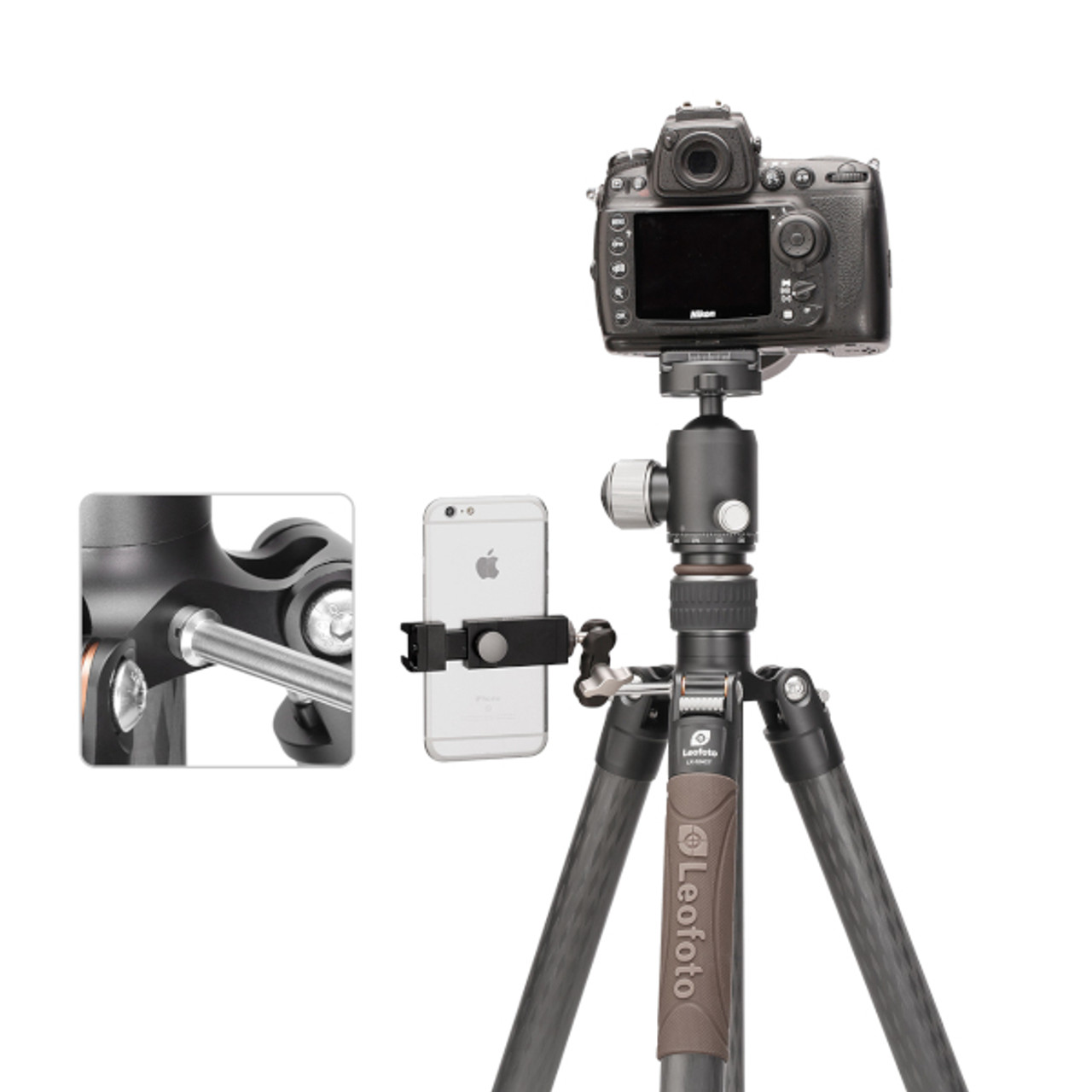

NOT ONLY FOR CAMERAS
UNC 1/4 mounting holes on the bottom and side of the spider are perfect for magic arm or smartphone.
SEMI-AUTOMATIC ANGLE STOP
The tripod can be arranged in 3 angles (85°, 55°, 23°) to meet different shooting requests. Press the angle button and swing leg to desired position. Release the angle button and it will engage.
FOLDING
Withdraw and tighten all the legs, keep pressing the angle button, and make the three legs turn to the opposite direction.
SILICONE HANDLE
Water-proof and Slip-proof material for added stability and safe handling especially for users with gloves.
LEG LOCK SYSTEM
Special leg lock system provides an easy and quick rotation of only 1/4 turn to lock and unlock the leg.
REMOVABLE FEET
The removable feet at the base of each pod can be replaced by steel claws, spikes and other accessories to facilitate the best traction for a given terrain. Spikes and vibration reduction teardrop feet are included in the package.
ONE PIECE SHIMS
One piece shims are stronger and more reliable than 2 piece shims leading to less failure and maintenance.
XB-38
|
Model |
XB-38 |
| Clamp | Screw Clamp |
| Q-R Plate | BPL-50 |
| Ball Diameter | 38mm |
| Height | 97mm |
| Base Diameter | 46mm |
| Mounting Screw | UNC 3/8"-16 |
| Max Load |
20kg |
| Weight |
368g |
PROFILE BALLHEAD
Ergonomic large main locking knob gives easy handling. Precisely machined ball makes the movement silky smooth. Drag tension knob is with number for better control of the tension. Laser-engraved scale on the panning base for easy and precise control during panorama shooting.
