Sony RM-DP7 Cinema Line Remote Control Unit

Product Description

Expanding the Cinema Line’s possibilities

The RM-DP7 (7.0-type) Cinema Line Controllers integrate flexible camera control and monitoring for cinematic productions.

RM-DP7: Large-screen model with 12G-SDI connectivity for professional workflows.

High-brightness LCD up to 2,000 cd/m²*¹
A full-HD (1920 x 1080) touch-enabled LCD panel delivers brightness of up to 2,000 cd/m², so footage stays clearly visible even in bright outdoor environments.

*1. This luminance value is a typical value at D65 and is not guaranteed.

High color accuracy
Featuring Sony’s professional video monitor-grade color calibration technology, each unit is individually calibrated at the factory and continuously compensates for color temperature drifting during operation, delivering reliable color accuracy in the field.

User LUT support
When shooting in S-Log3 for post-production, applying an LUT to the monitor image makes it easier to visualize the intended final look. Up to 16 LUT files can be imported in addition to the built-in presets.^*2

*2. LUT files (.cube) can be imported via SD card. 17- and 33-grid LUT files (.cube) are supported.

Comprehensive physical controls
Includes ITEM keys 1 to 6, ASSIGN 1 to 4 buttons^*3, multi-function dial, MENU button and LOCK switch.

*3. DP5 features ASSIGN 1 and 2 buttons only.

Strap holes for stable handling
Four corner strap holes ensure secure carrying and stable handling during shooting.

Detachable grip for remote operation
This included grip offers a secure hold and lets you operate the control knob steadily, even when handheld.

Elevated control and image quality for Cinema Line

Responsive, tactile control knob
Complex gear-driven setup is no longer required. Attach the included Control knob to the monitor for precise focus control of compatible Cinema Line cameras^*4, even from a distance. View footage on the Lens Control Page and operate intuitively via wired or wireless connections. Ergonomic design, smooth torque, and high resolution enable accurate control, with power supplied directly from the monitor.

*4. See Sony’s support web page for information on compatible cameras. Camera control functions with FX6 (wired and wireless) and BURANO (wired only) are planned to be supported through future software updates in the second half of 2027 or later.

Focus indicator
The focus indicator shows at the monitor edge keeping the image clear. It links with control knob operation for precise focus pulling and supports mechanical stop settings and focus point marking as needed.

Autofocus support
Before or during recording, use monitor touch focus or touch tracking based on your compatible FX camera*4 settings. Switching between manual and autofocus as needed gives you greater shooting flexibility.

*4. See Sony’s support web page for information on compatible cameras. Camera control functions with FX6 (wired and wireless) and BURANO (wired only) are planned to be supported through future software updates in the second half of 2027 or later.

Zooming
With a compatible lens^*5 attached, the Lens Control Page screen lets you zoom in and out via button controls or touch operation and adjust zoom speed. This supports smooth zooming suited to what and how you’re shooting.

*5. Please see support page for compatible lenses.

Quick access to any screen at the press of a button
Intuitive button operation gives you fast access to any settings screen. In addition to a HOME button for instant access to the BIG6 screen, ITEM keys 1 to 6 at the display top and bottom correspond to individual feature pages. The REC button that syncs with the camera body, ASSIGN 1 to 4 buttons^*3, and a multi-function dial all support fluid operation on set.

*3. DP5 features ASSIGN 1 and 2 buttons only.

Main shooting settings on the BIG6 screen
The BIG6 (HOME screen) brings together six frequently used shooting parameters: FPS (frame rate), ISO, Shutter (speed, angle), IRIS (aperture), Look, and White Balance. Touch each parameter to check or change its variable/fixed state. The Time Counter and Audio Level Meter are shown on the same screen.^*6

*6. Visible only when connected to a camera. See Sony’s support web page for information on compatible cameras.

Shooting information display
While connected to a compatible camera^*4, icons and shooting information are shown neatly outside the main image area so they don't obstruct the footage. The multi-function dial lets you switch quickly between information display screens.

*4. See Sony’s support web page for information on compatible cameras. Camera control functions with FX6 (wired and wireless) and BURANO (wired only) are planned to be supported through future software updates in the second half of 2027 or later.

As an external monitor
The monitor, when not used as a camera control device, can serve as an on-camera monitor connected via SDI (DP7 only) or HDMI input. Screen orientation can also be adjusted with the menu, allowing for a flexible setup.

Extensive shooting support functions

Convenient touch operation and focus
Touch operation across the wide screen supports menu navigation and touch focus. Intuitive controls let you smoothly perform auxiliary operations while shooting. Double tap anywhere on the shooting screen to zoom in up to 6x around the point for precise focus checking. Pinch to zoom and swipe to move the zoomed area. Button controls work the same way alongside touch control.

Monitoring functions for shooting assistance
The Scopes Page provides precise on-screen monitoring tools, such as Waveform monitor, Vector Scope, False Color, and Zebra display for managing exposure and color on set. Additional assist functions, including Aspect marker, De-Squeeze, and Peaking display, support accurate framing and focus control.

Reliable control through stable wired connection
Control is possible via Ethernet and USB connections.

Flexible wireless connectivity unconstrained by layout
Using a third-party wireless transmission unit, you can wirelessly connect to the shooting camera and control lenses with low latency and transmit video at up to 4K resolution^*7.

*7. Display resolution is limited to FHD (1920 × 1080).

High reliability and durability

Flexible power solutions

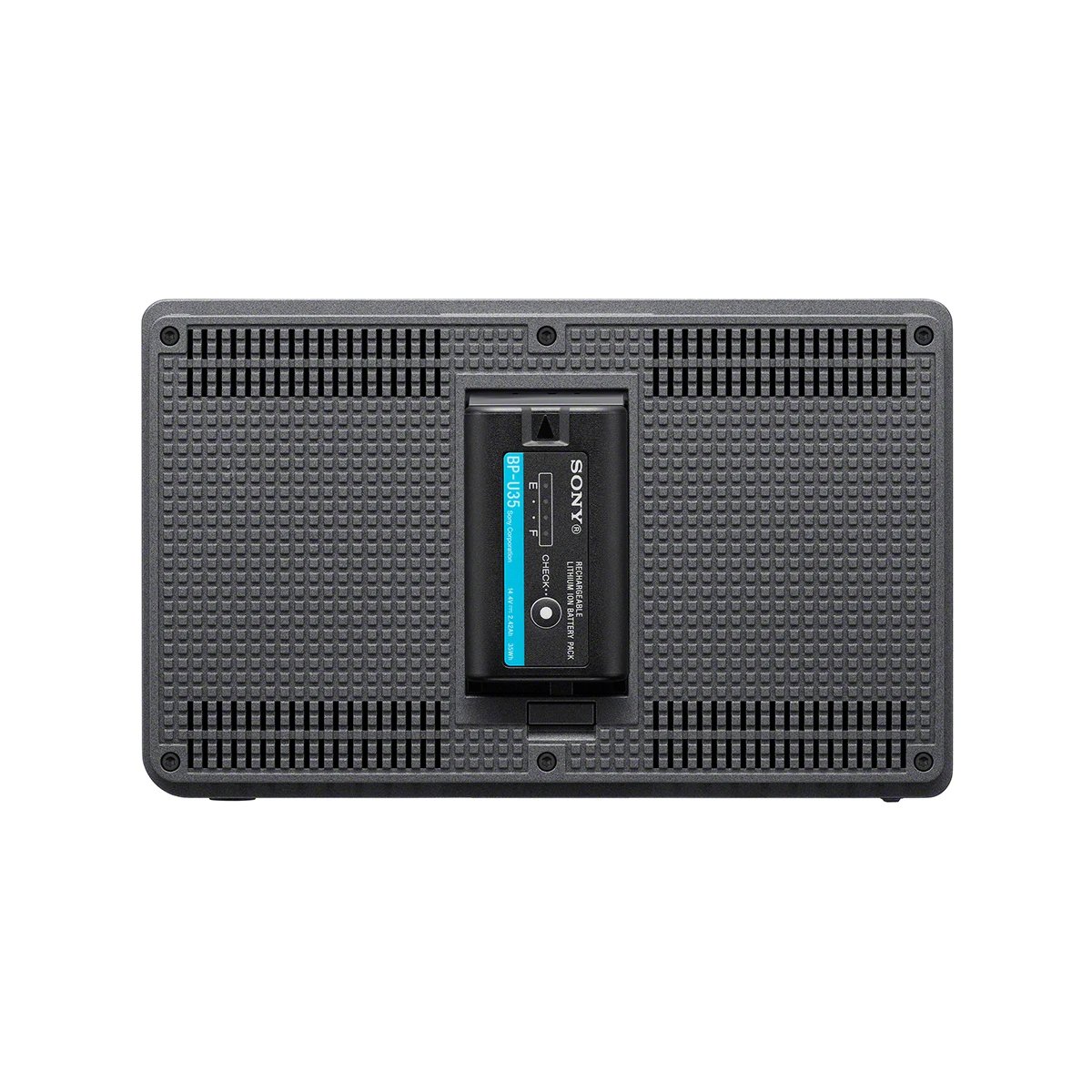

BP-U35 and BP-U70 batteries^*8 can be attached directly to the rear of monitor. Power is also supported via DC IN connector or USB Type-C® (PD)^*9. The hot-swap function allows safe battery changes or power switching without interrupting shooting.

*8. Battery (Sony BP-U type) and charger sold Sep.

*9. When using USB Type-C (PD) power input, a compatible external power source and USB PD-compliant cable are required.

Active heat dissipation
The housing incorporates a heat-dissipating design, so you can use it with confidence during extended shooting. It includes a built-in cooling fan, with selectable modes including Auto, which prioritizes stable operation, and a quieter mode that reduces fan noise.

Supports stable handling
An external grip for remote operation is included. This offers a secure hold and lets you operate the control knob steadily, even when handheld. The four corners of the monitor unit also feature strap holes for secure carrying and stable handling during shooting.

Rugged aluminium body
The monitor unit’s aluminium body is lightweight yet durable enough for demanding on-set use. Each side (top, bottom, left, and right) has one 1/4-20 UNC screw hole to securely attach optional transmitters.

Designed for dust and moisture resistance^*10

Designed for use in many different shooting environments, including outdoors, offering dust and moisture resistance.

*10. Not guaranteed to be 100% dust and moisture proof. Dust and moisture may enter more easily when connector covers are open and cables are connected. Please avoid using it in sandy or dusty areas.

Reduced environmental stress

Sony's Road to Zero plan^*11 aims at a zero environmental footprint by 2050. Sony Group manufacturing facilities run on 100% renewable energy. We are working towards the use of non-plastic packaging materials^*12 that provide ample protection against shock and impact. We also use paper product bags to further reduce plastic use and minimize environmental stress.

*11. For Sony's environmental activities, refer to https://www.sony.co.jp/en/corporate/sustainability/environment/

*12. Not including materials used in coatings and adhesives.

FOOTNOTES:

1 This luminance value is a typical value at D65 and is not guaranteed.

2 LUT files (.cube) can be imported via SD card. 17- and 33-grid LUT files (.cube) are supported.

3 DP5 features ASSIGN 1 and 2 buttons only.

4 See Sony’s support web page for information on compatible cameras. Camera control functions with FX6 (wired and wireless) and BURANO (wired only) are planned to be supported through future software updates in the second half of 2027 or later.

5 Please see support page for compatible lenses.

6 Visible only when connected to a camera. See Sony’s support web page for information on compatible cameras. https://www.sony.com/electronics/support

7 Display resolution is limited to FHD (1920 × 1080).

8 Battery (Sony BP-U type) and charger sold Sep.

9 When using USB Type-C (PD) power input, a compatible external power source and USB PD-compliant cable are required.

10 Not guaranteed to be 100% dust and moisture proof. Dust and moisture may enter more easily when connector covers are open and cables are connected. Please avoid using it in sandy or dusty areas.

11 For Sony's environmental activities, refer to https://www.sony.co.jp/en/corporate/sustainability/environment/

12 Not including materials used in coatings and adhesives.
